rifton stander.

Really extensive.

I am your versatile companion!

Because I combine many functions in one aid: with me you get support from the front, from behind or just as you need it: you can use me in a supine or prone position. This makes me your universal companion in all situations. Meet your friends at eye level during standing training and enjoy playing together – I’ll hold you!

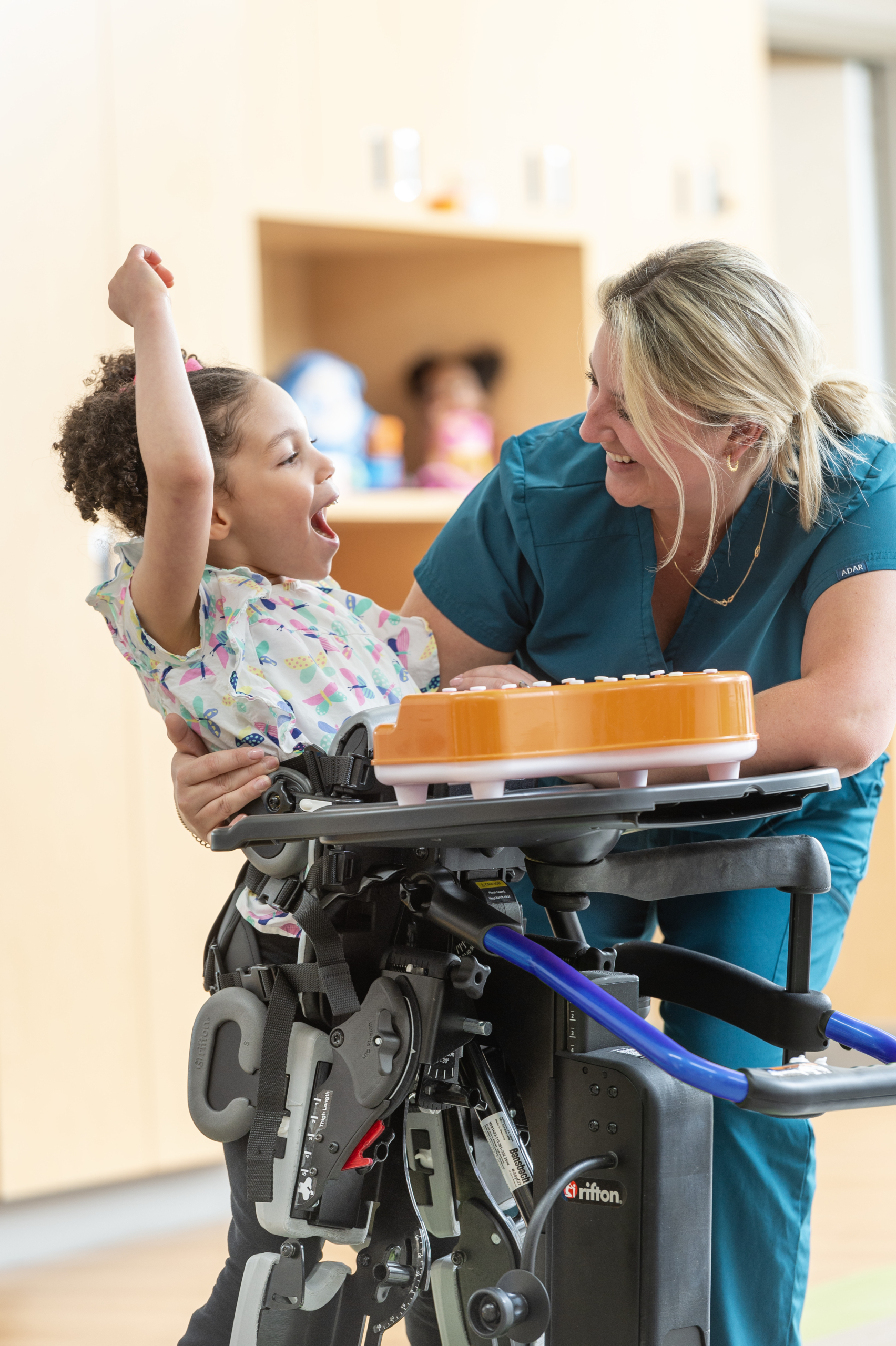

anpassungsfähigen Schrägliegesystem für Kinder mit Behinderung von Schuchmann Rifton

Highlights

What the rifton stander. can do:

Variable adjustment options:

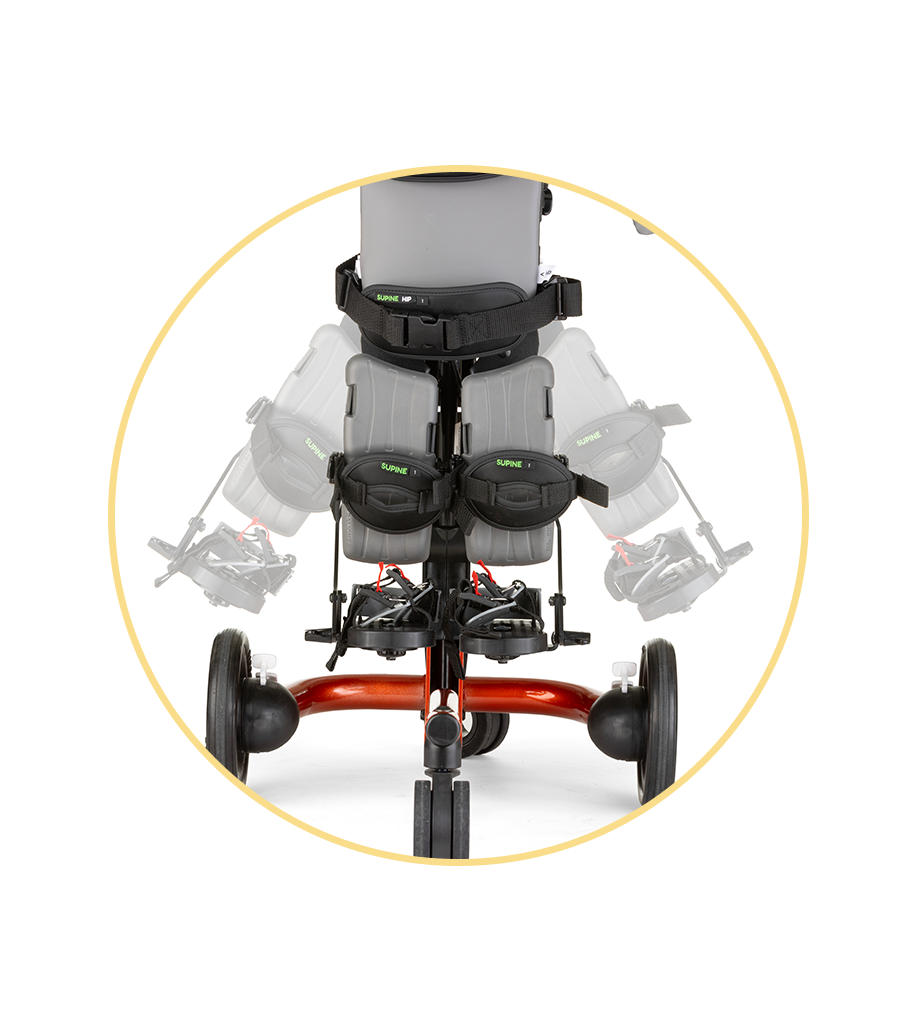

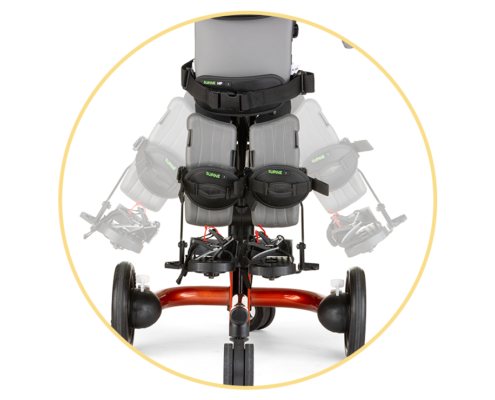

The legs can be individually adjusted for leg length, hip and knee angle.
More positioning options:

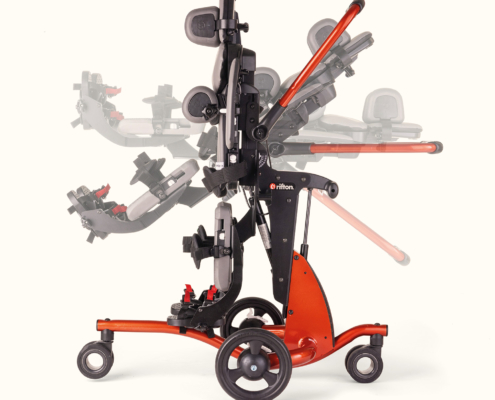

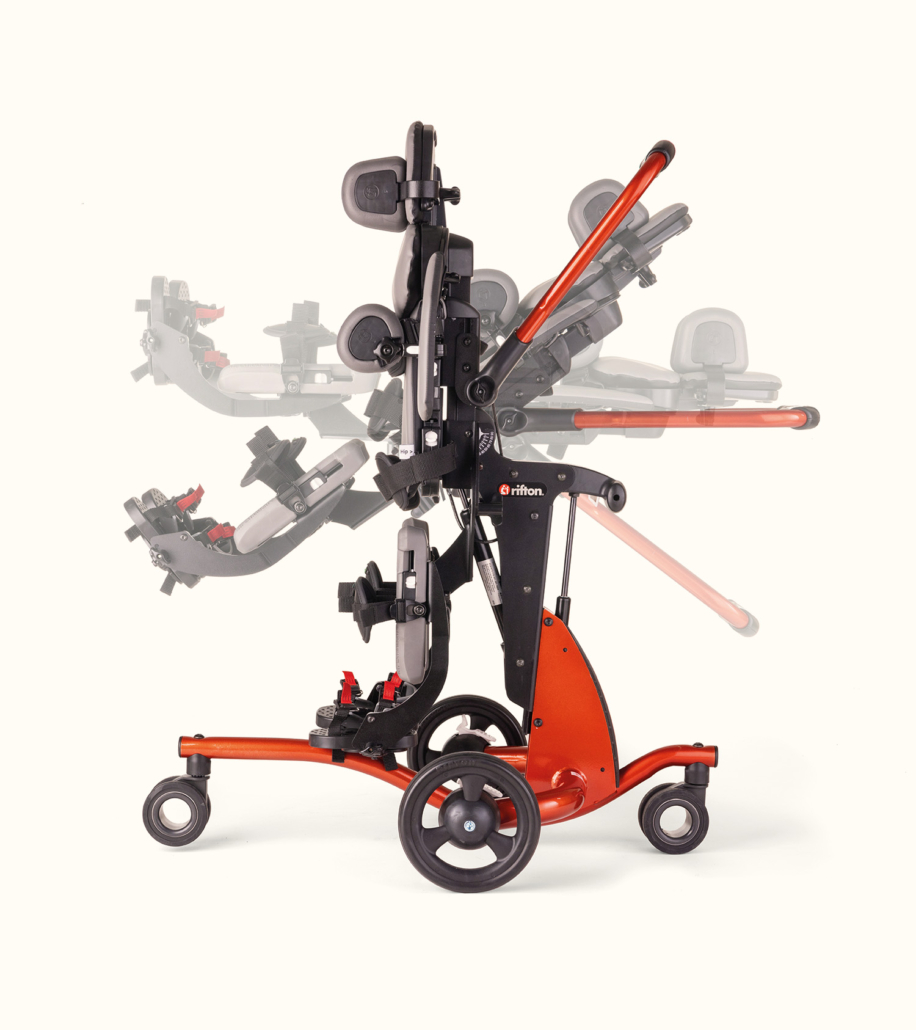

If the multi-position configuration is ordered, changing between the prone and supine positions is quick, easy and requires no tools.
For an adjustment to your everyday life:
The center column can be adjusted in height.
For optimal upright posture:

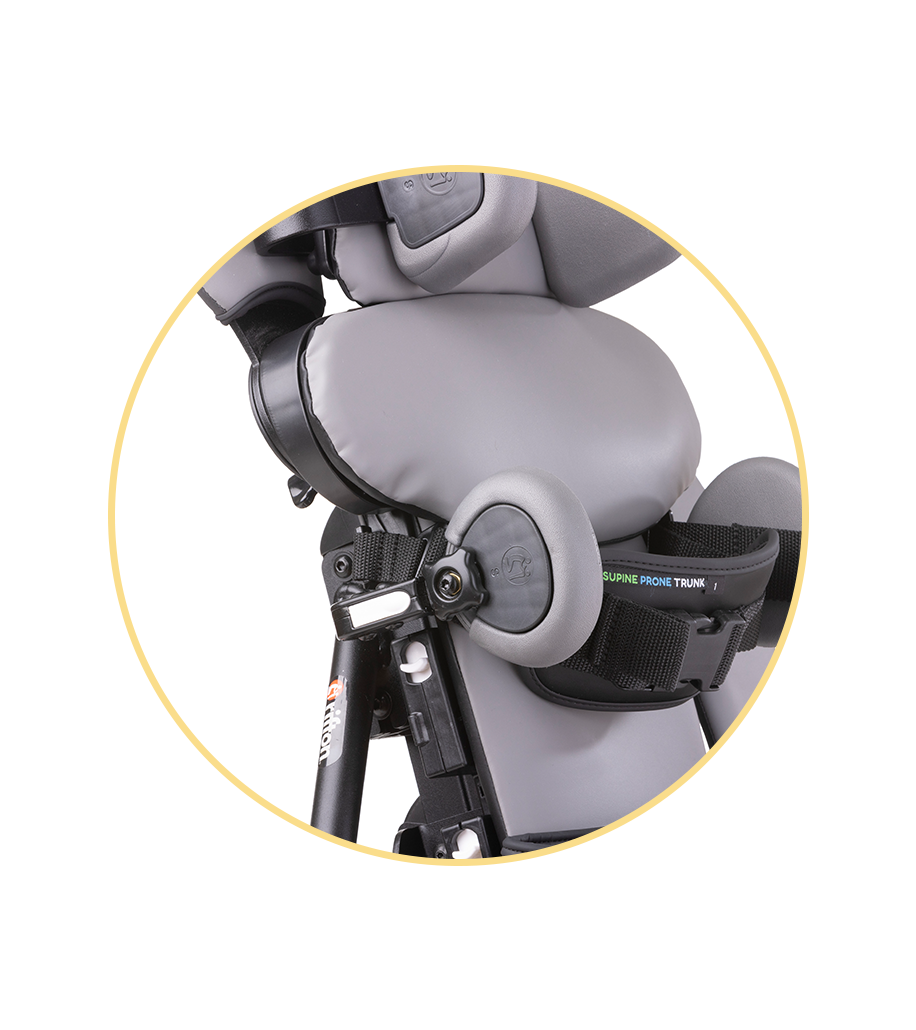

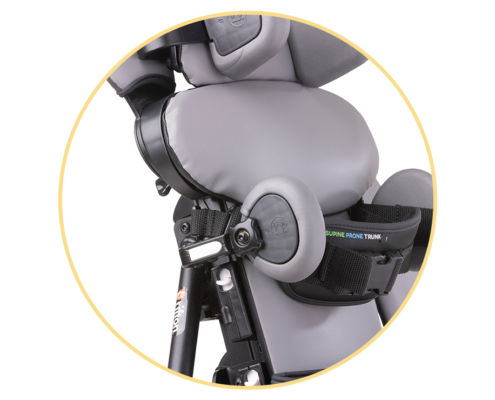

Thoracic and pelvic supports provide support and enable a stable and upright standing position.
For a secure standing position:

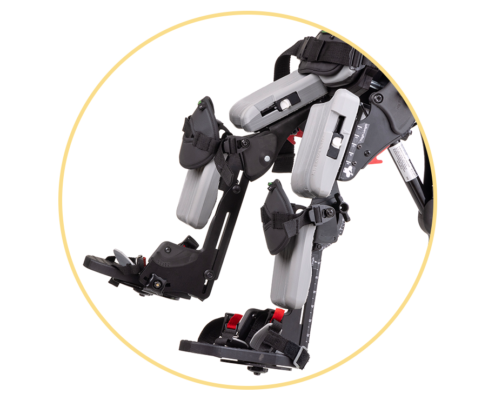

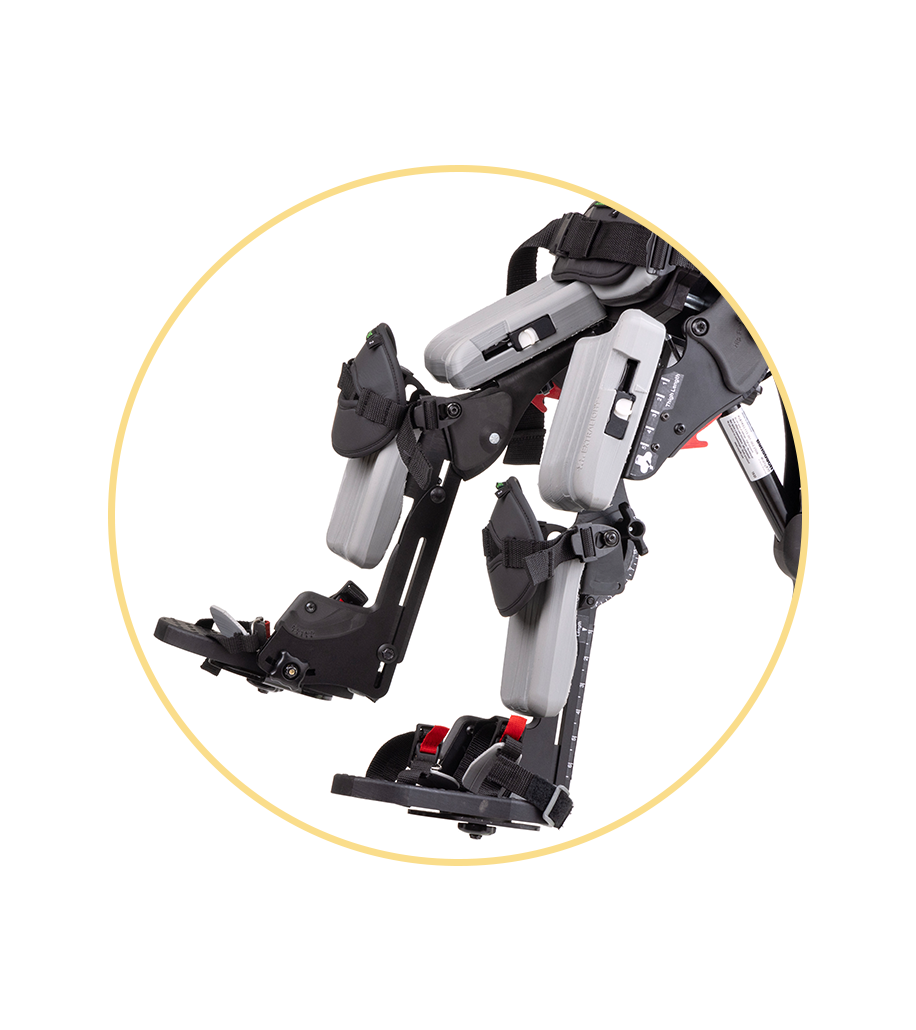

The footrests can be independently swiveled and tilted and have a magnetic quick-release fastener.
For more safety:
2 lockable wheels provide a very secure stand and easy transfer.

Technical details

Data	Size 1	Size 2	Size 3
Body height	71 – 106 cm	96 – 134 cm	122 – 165 cm
Total length	81,5 cm	99 cm	109 cm
Total width	53,5 cm	68,5 cm	73,5 cm
Height of horizontal body support	56 – 71 cm	56 – 91,5 cm	60 – 96,5 cm
Height foot to knee	15 – 28 cm	25,5 – 38 cm	31 – 48 cm
Height knee to hip	15 – 25,5 cm	20,5 – 33 cm	30,5 – 44 cm
Height foot to upper edge of headrest	78,5 – 109 cm	104 – 139,5 cm	124,5 – 169 cm
Width between the fuselage side panels	12,5 – 25,5 cm	18 – 28 cm	23 – 35,5 cm
Width between medial/lateral thigh support	5 -10 cm	7,5 – 12,5 cm	10 – 14 cm
Total weight	23,5 kg	35,5 kg	52 kg
max. load	34 kg	45 kg	84 kg
